Description

(Max Submersible Depth – 30m under water)

The Pumpman Solar Combo is supplied with 1 A-Grade Renewsys Solar Panel for optimum performance and long life operation.

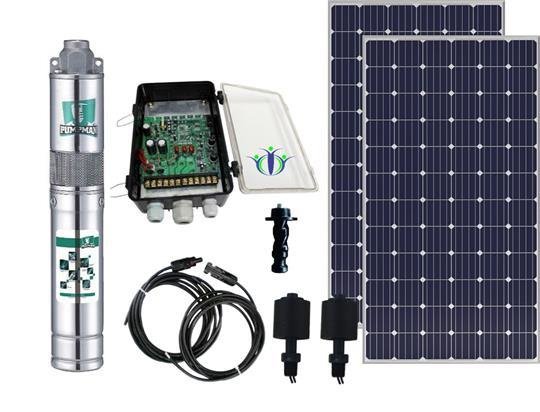

This solar pump combo includes:

Pump & Motor, MPPT Controller, 1 x Level Probe with 55m cable, Splicing Kit, Spare Rotor, Solar Cable with Male & Female MC4 Connectors and Solar Panels.

The flow levels range between 1350 to 600 liters per hour with the specific panel configuration at maximum power. (Cut-off Head 55m)

The pump controller can be fitted with batteries when after hour pumping is required. It is fitted with adjustable speed control to adjust flow levels as well as a borehole level control timer.

INCLUDED IN COMBO

• Pump & Motor
• Mppt Solar Pump Controller
• Solar Panel Cable 6m
• Water level sensor x 1 (Borehole)
• Cable Splicing Kit
• Protector Sleeve Soc
• 1 x 330 Watt Renewsys (Poly) Multi Crystalline Solar Panel (A Grade)
• Instruction Manual & Quick Connection Guide

SPECIFICATIONS

• Voltage – 24 Volt
• Power – 120 Watt
• DC Motor – Oil cooled / Brush-less
• Motor Outer Shell – Stainless Steel
• Pump Outer Shell – Stainless Steel
• Impeller style – Screw Type (Helical Rotor)
• Impeller material – Stainless Steel / Rubber
• Bearing – Ball Bearing
• Max Flow Rate – 1350 l/hr
• Max Head – 50m
• Outlet size – 3/4″ (20mm)
• Outlet -Stainless steel

SOLAR PV CONFIGURATION:

• 1 x 330 Watt Renewsys A Grade Panel

WARRANTY

Solar Panel Warranty – 10 Years + 25 Year Yield @ 80%+

Pump Controller – 1 Year (Terms & Conditions as per Installation Guide)
